Wuxi Xianglong Plastic Technology Co.,Ltd is one of the leading China pvc infills sheet for counter flow cooling tower manufacturers, welcome to wholesale cheap infill pvc sheet from our factory.
Quick Details-
Condition: New
-
Cooling Type: Counter Flow
-
Material: PVC
-
Place of Origin: Hebei, China (Mainland)
-
Brand Name: Sinta
-
Model Number: ST-P206
-
Dimension(L*W*H): 1200x500mm
-
Certification: ISO9001
-
Warranty: 1 YEAR
-
After-sales Service Provided: Overseas third-party support available
-
flute height: 25mm
-
usage: Counter flow cooling tower
-
block size: 500mmx1200mmx850mm
| Packaging Details: | PVC Infills Sheet For Counter Flow Cooling Tower can be packed by wooden pallet or as your request. |
|---|
PVC Infills Sheet For Counter Flow Cooling Tower, Infill PVC Sheet Product Introduction:
Cooling Tower Fill is one of the most important components for exchange of gas and water in cooling Tower.It is the major parts to improve the efficiency of cooling tower and make sure the economy and safe operation.
With the development of the plastic industry, counter-current tower drench water plastic packing "S" shape ladder wave, obliquely wave, which has the heat dissipation ,good performance ,Ventilated small resistance, durable, based on the easy and other advantages, it is widely used in different types of large, medium, small, cooling tower.
Infills PVC Sheet Media and type:
|
Length(mm) |
Height(mm) |
Film thickness(mm) |
||||
|
Size |
Tolerance |
Size |
Tolerance |
Size |
Tolerance |
|
|
"S" Wave |
1000 |
±10 |
500 250 |
±5 |
0.4 |
±0.05 |
|
2000 |
±10 |
500 250 |
±5 |
0.4 |
±0.05 |
|
|
Double Inclined |
1000 |
±10 |
500 250 |
±5 |
0.4 |
±0.05 |
|
Inclined Wave |
1000 |
±10 |
500 |
±5 |
0.4 |
±0.05 |
PVC Infill Sheet Heating Power and Resistance Character:
|
Fill Height |
Cooling No. (Volume Scattered Coefficient: Ka) |
Resistance Equotion:P/p1=9.81*A*Vcpm A.M expression |
|
|
"S" Wave |
1m |
=1.83y0.65 |
A=-0.0019q2+0.0685q+0.06543 |
|
Ka=4746g0.56q0.36 |
M=-0.0028q2-0.0170q+1.9480 |
||
|
Double Inclined |
1m |
=1.92y0.68 |
A=-0.0006q2+0.0306q+0.06376 |
|
Ka=4342g0.69q0.36 |
M=-0.0002q2-0.0026q+1.9029 |
||
|
Inclined Wave |
1m |
=1.85y0.64 |
A=-0.0001q2+0.189q+0.6374 |
|
Ka=4296g0.63q0.38 |
M=-0.0006q2-0.0122q+2.0178 |
Remark:P-Fill Resistance,Pa P1=Air density,kg/m3 q---Spray waterdensity,t/(m2*h) Vcp-Spray Fill Average Wind Speed m/s
g--Ventilation density kg/(m2*h g-gas water radio
PVC Infill pictures and packages:

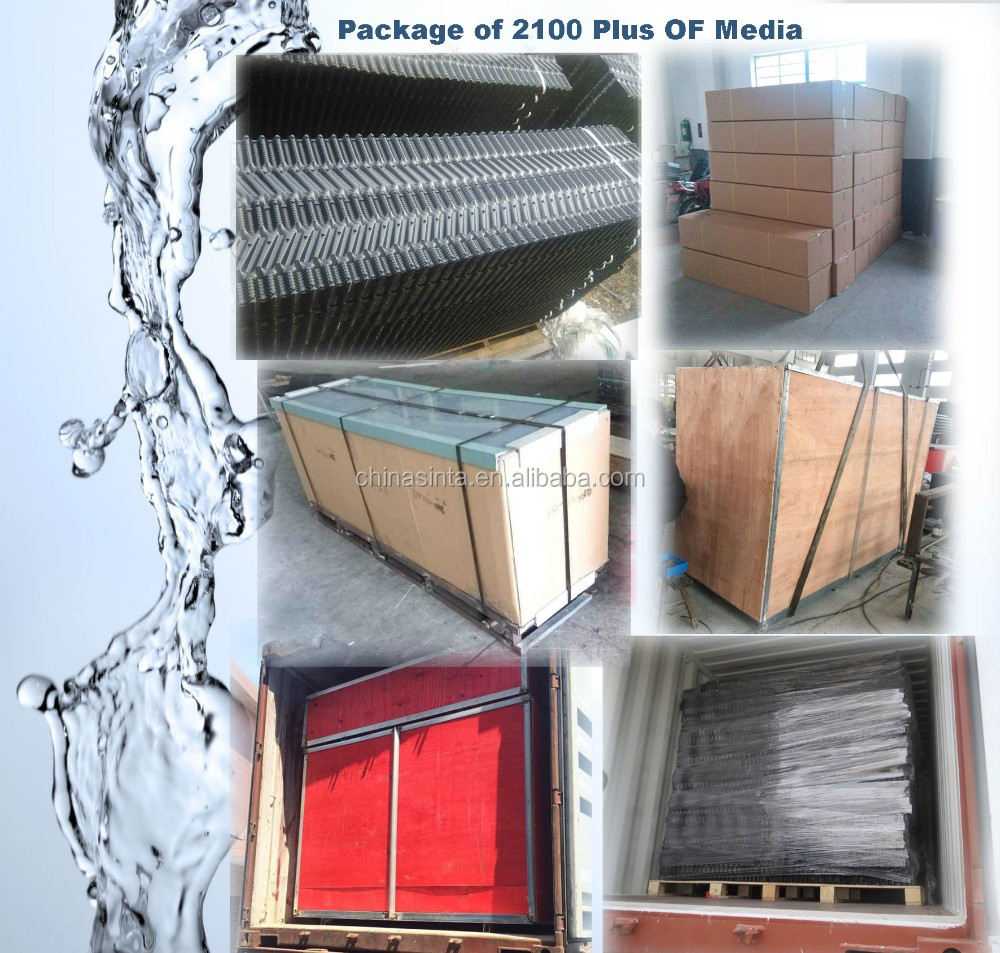

Cooling tower pvc infill package:

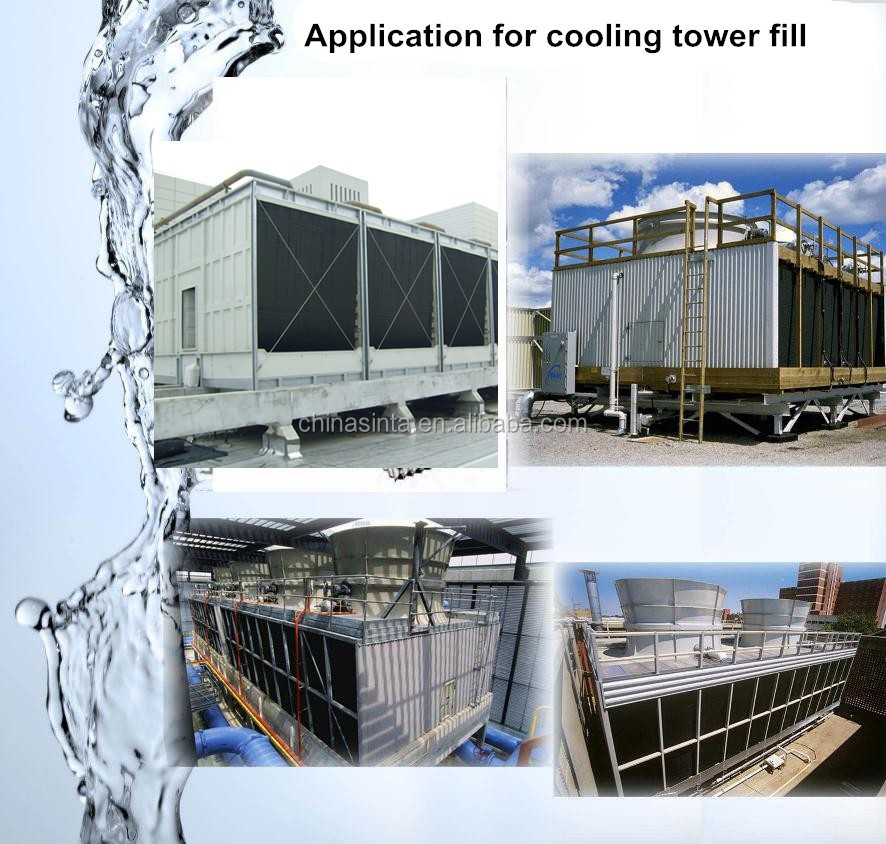

Applications of pvc infill of cooling tower:
Other PVC Infills Sheet For Counter Flow Cooling Tower pictures:
